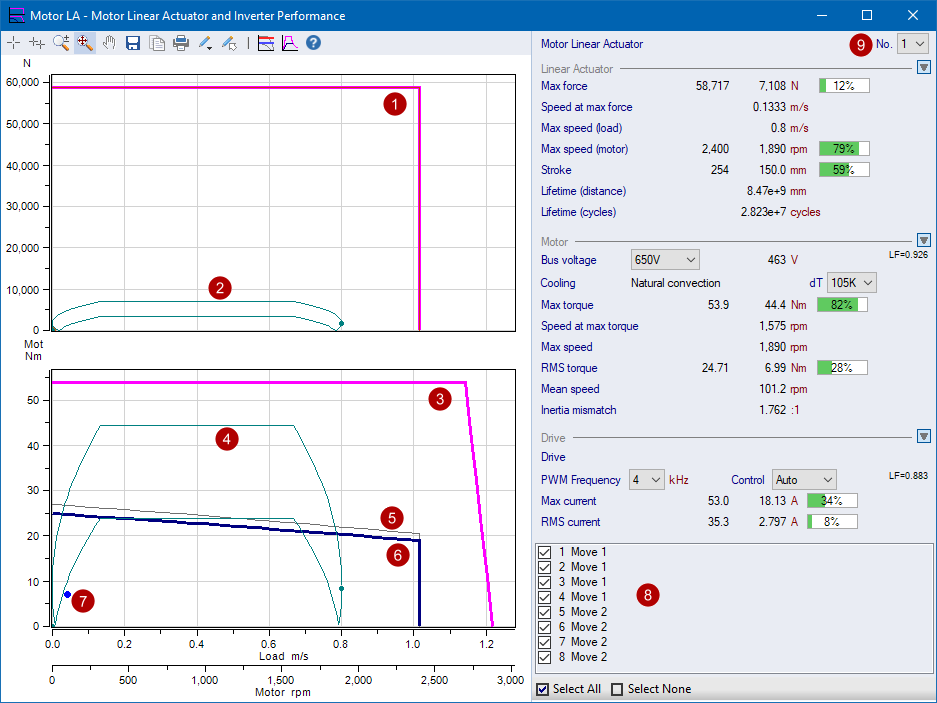

Motor Linear Actuator Force vs Speed

Linear Actuator rated maximum output force characteristic curve

Application force profiles at linear actuator output

  • Each motion segment is displayed
  • Segments where the start and end velocities are the same are shown as a dot

Motor rated peak torque characteristic curve

Application torque profiles at motor

  • Each motion segment is displayed
  • Segments where the start and end velocities are the same are shown as a dot

Motor rated continuous torque characteristic curve

Motor rated continuous torque characteristic curve with the environment de-rating load factor (LF)

Motor application RMS torque

Select motion segments to show or hide

  • Moves have 4 segments - Acceleration, Constant Velocity, Deceleration and Dwell

Specify the number of Motor Linear Actuators in parallel
