The Output Torque vs Input Speed chart shown belowclearly
illustrates the torque profile throughout all moves.

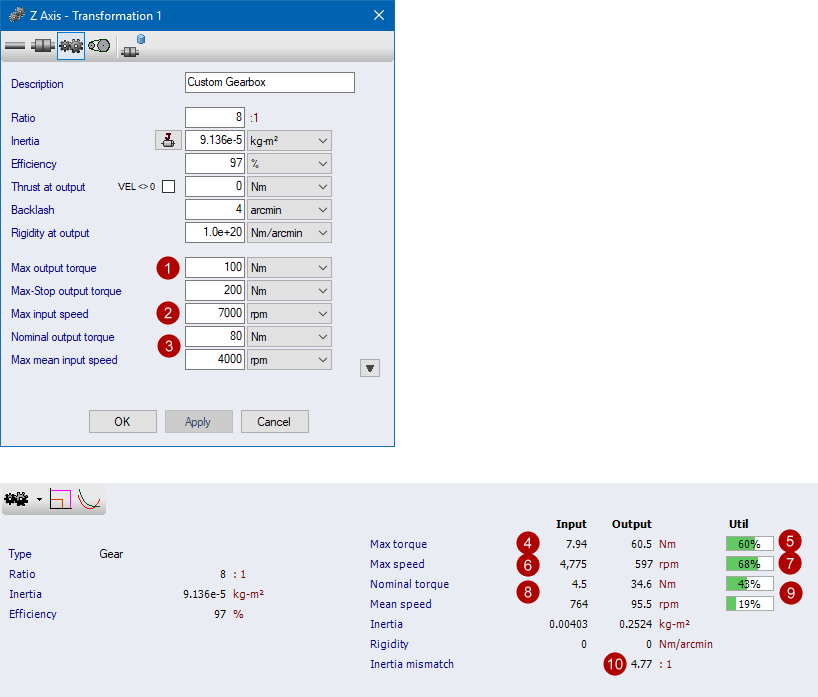

The user inputs below on the form define the limits and
performance margins.
| Inputs
 |
|
 | Output Torque Limit
Systems check reports if the output torque limit has been
exceeded
 |
|
 | Input Speed Limit
Systems check reports if the input speed limit has been
exceeded
 |
|
 | Nominal Torque and Mean Input Speed Limits
Systems check reports if the nominal output torque limit has
been exceeded
 |
| Results
 |
|
 | Maximum Output Torque
The maximum output torque for all moves
 |
|
 | Max Output Torque Utilization

| Where: |
|  | U | Max Output Torque Utilization | % |
|  | TMax | Application maximum output torque | Nm |
|  | TMaxLimit | Rated maximum output torque limit | Nm |
 |
|
 | Maximum Input Speed
The maximum input speed for all moves
 |
|
 | Input Speed Utilization

| Where: |
|  | U | Input speed utilization | % |
|  | nMax | Application maximum input speed | rpm |
|  | nMaxLimit | Rated maximum input speed limit | rpm |  |
|
 | Nominal Output Torque at Mean Input Speed
|  | Nominal output torque |
 |
|  | Mean input speed |
 |    |
|
 | Nominal Output Torque Utilization
 Actual Duty Cycle, ED

| Where: |
|  | U | Nominal Output Torque Utilization | % |
|  | T2m | Application nominal output torque | Nm |
|  | T2N | Rated nominal output torque limit | Nm |
 |
|
 | Inertia Mismatch
|  | Transformation 1Inertia Mismatch
 |
 |
|  | Transformation 2Inertia Mismatch
 |
 |

| Where: |
|  | iT2 | Transformation 2 ratio |
|  | iGB | Gearbox ratio |
|  | iT1 | Transformation 1 ratio |
|  | JDM | Load inertia at the drive mechanism input |
|  | JT2 | Transformation 2 inertia at the input |
|  | JGB | Gearbox inertia at the input |
|  | JT1 | Transformation 1 inertia at the input |
|  | JBr | Motor brake inertia |
|  | JM | Motor rotor inertia |    |
