Overview

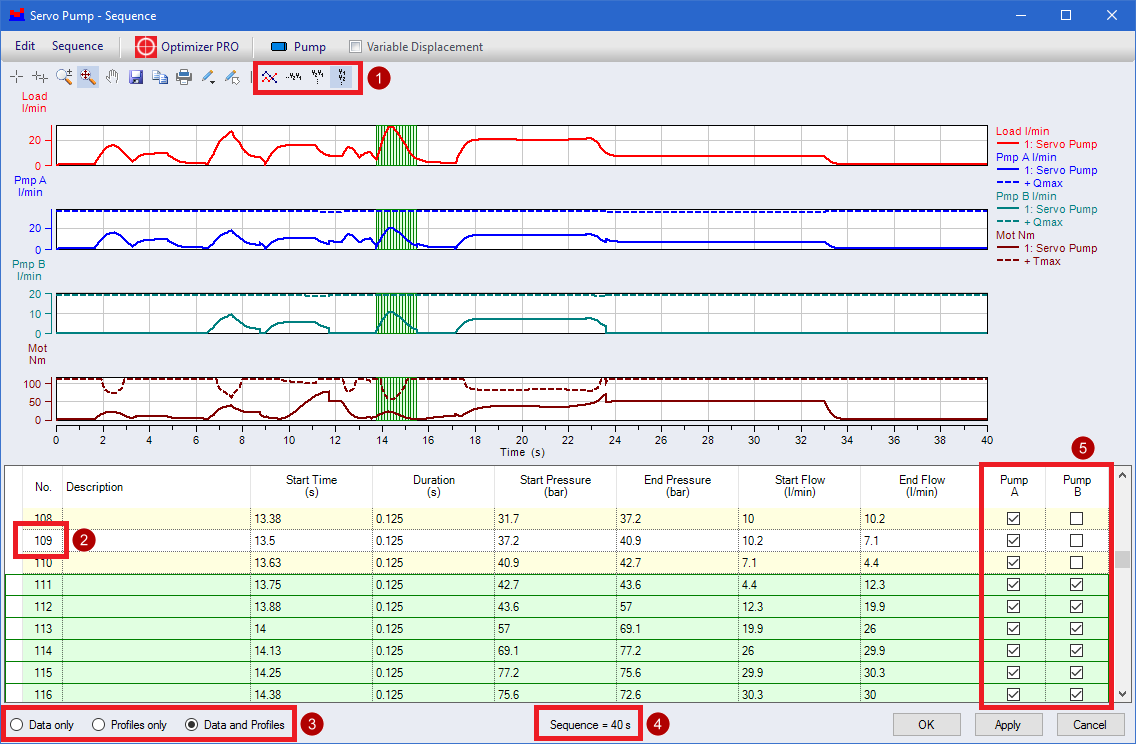

The Sequence form illustrates all the pressure and flow segments within the cycle, referred to as the sequence of an axis. To coordinate between the timing of other axis moves, you may chart up to 6 profiles, from any axis, using the Configure Profiles form.
|
|
|
||||||
|
|
Double-click on the row select cell or step number to bring up
the Segment data entry form. Segment data can only be edited in the
Pressure and Flow Segment
form. |
||||||
|
|
|
||||||
|
|
Displays the time at the end of the last step in the
sequence. Accuracy to 0.1%. E.g. A 100.123456s sequence
time will be displayed as “100.12s” |
||||||
|
|
The Pump A & B checkboxes show if one or both pumps are to supply this segment. These checkboxes are only displayed when the "2 Pumps" feature is enabled in the Pressure and Flow Load form. |
Insert / Append / Delete Segments

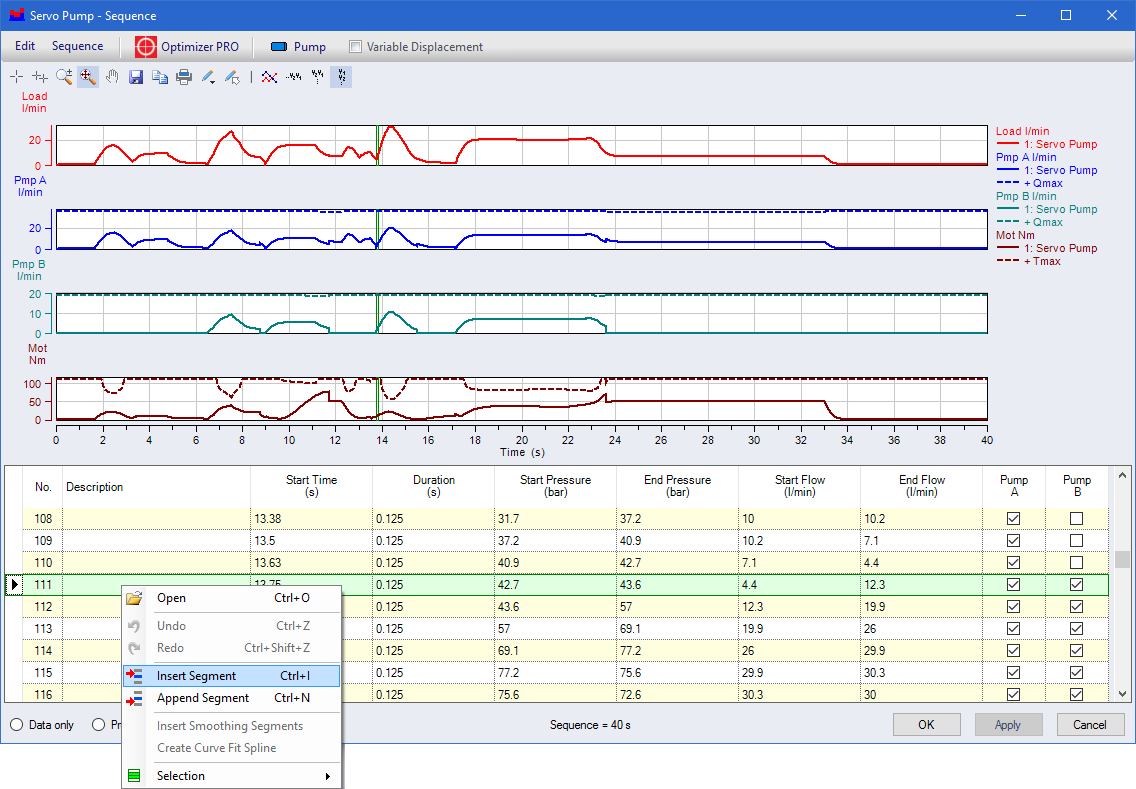

Select a Segment, then click Edit at the top left of the form, or right-click on the selected step, and then select Insert, Append or Delete. How to insert a segment before Step 111 is shown below.
Split Segment
The Split Segment feature splits the selected segment into N equal segments that equal the total duration of the original segment.

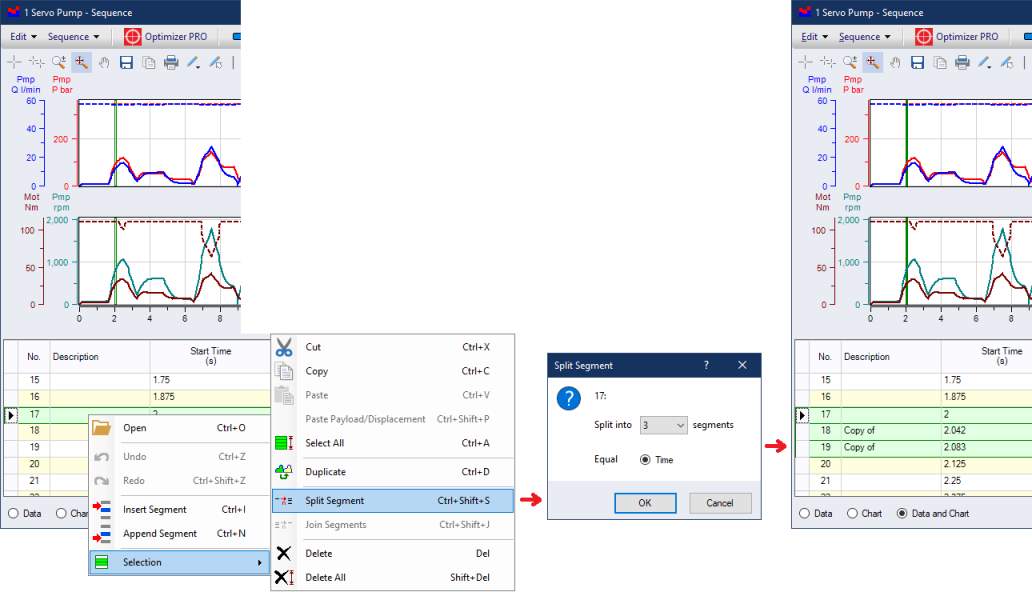

To split a segment, select one segment, then right-click and select "Selection > Split Segment", and specify the number of segments.
